  • Merk:
    ATLANTIC FLUID TECH
  • Model:
    MLST-200-AAGN
  • Serienummer:
    8 x PIECES IN STOCK
  • Uren:
    UNUSED
  • Gewicht:
    8,2 LKg
  • Prijs:
    € 205
Omschrijving

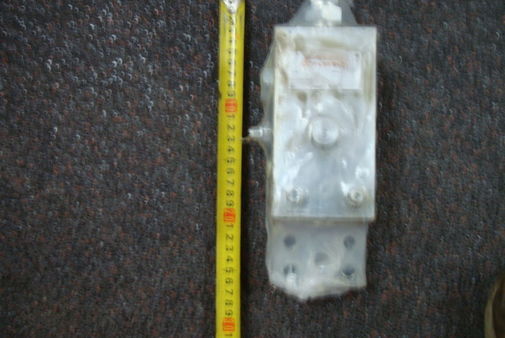

UNUSED CHECK AND METERING VALVE (SAFETY VALVE)

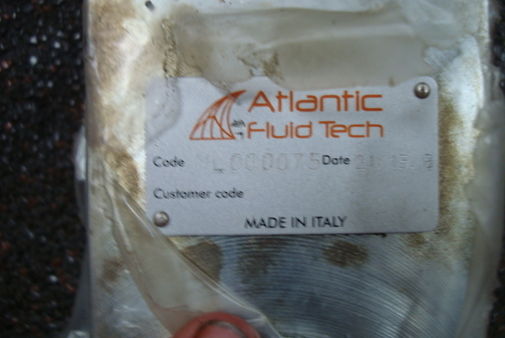

MAKE : ATLANTIC FLUID TECH
MODEL : MLST-200-AAGN
TYPE : FLANGED 3/4" SAE 6000
MAX. OPERATING PRESSURE : 420bar
RATED FLOW : 250 l/min
MANIFOLD : STEEL
WEIGHT : 8,2 Kg
MAIN PORTS SIZE : V2,C2: 3/4" SAE6000  E,Pil,t: G 1/4"
STANDARD SETTING (bar) : 1= 350 Q=5l/min  2=7.5 Crack.p.r
ADJUST.RANGE (bar) 1= 150-420  2= 3-15
PRESSURE INCREASE (bar/turn) : 1=236  2=5

MEET REQUIREMENT OF ISO 8643
MADE IN ITALY

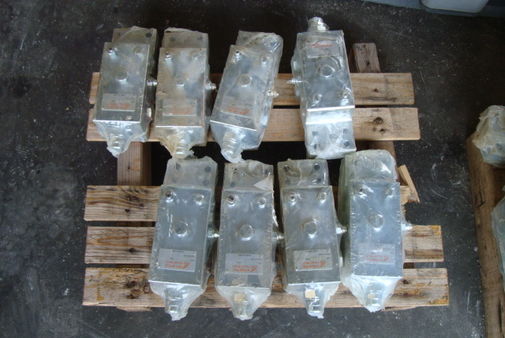

8 x PIECES IN STOCK.
PRICE PER 1 x PIECE
Check and Metering Valve MLST-200
  • Merk:
    ATLANTIC FLUID TECH
  • Model:
    MLST-200-AAGN
  • Serienummer:
    8 x PIECES IN STOCK
  • Uren:
    UNUSED
  • Gewicht:
    8,2 LKg
  • Prijs:
    € 205
Omschrijving
UNUSED CHECK AND METERING VALVE (SAFETY VALVE)

MAKE : ATLANTIC FLUID TECH
MODEL : MLST-200-AAGN
TYPE : FLANGED 3/4" SAE 6000
MAX. OPERATING PRESSURE : 420bar
RATED FLOW : 250 l/min
MANIFOLD : STEEL
WEIGHT : 8,2 Kg
MAIN PORTS SIZE : V2,C2: 3/4" SAE6000  E,Pil,t: G 1/4"
STANDARD SETTING (bar) : 1= 350 Q=5l/min  2=7.5 Crack.p.r
ADJUST.RANGE (bar) 1= 150-420  2= 3-15
PRESSURE INCREASE (bar/turn) : 1=236  2=5

MEET REQUIREMENT OF ISO 8643
MADE IN ITALY

8 x PIECES IN STOCK.
PRICE PER 1 x PIECE
