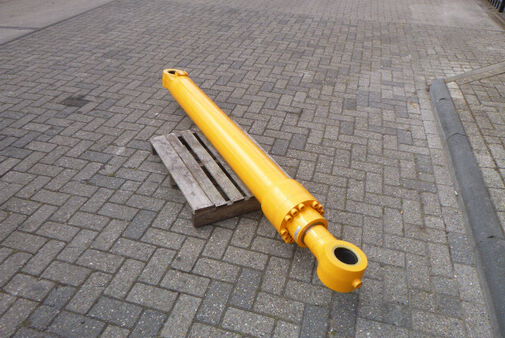

BOOM CYLINDER LH HYUNDAI

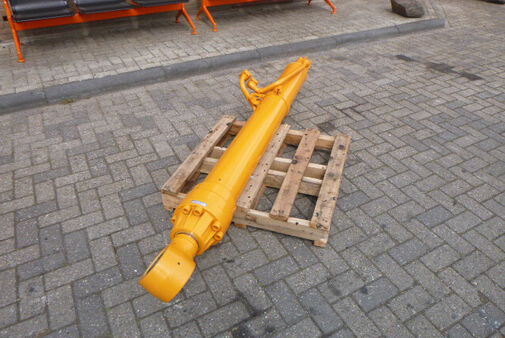

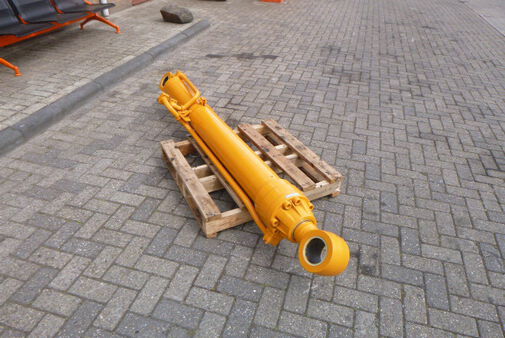

NEW / UNUSED ORIGINAL * HYUNDAI * HYDRAULIC CYLINDER
FOR EXCAVATOR : HYUNDAI R450LC-3

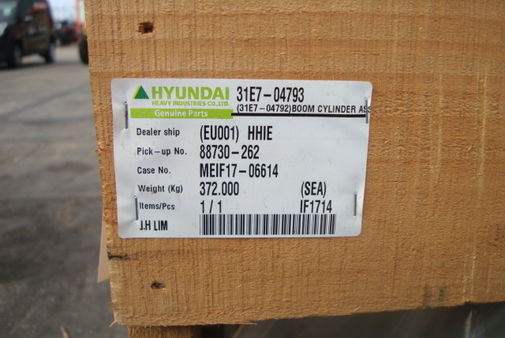

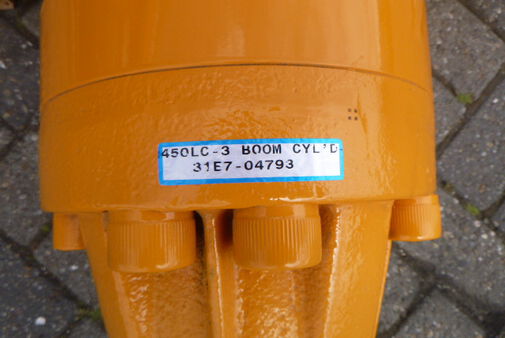

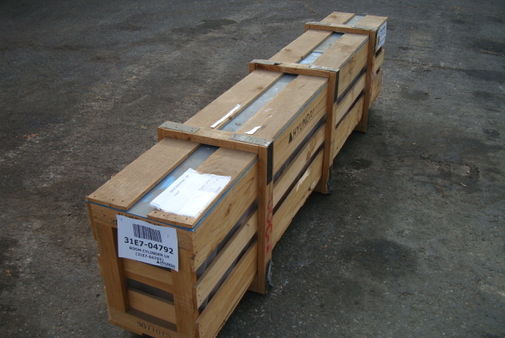

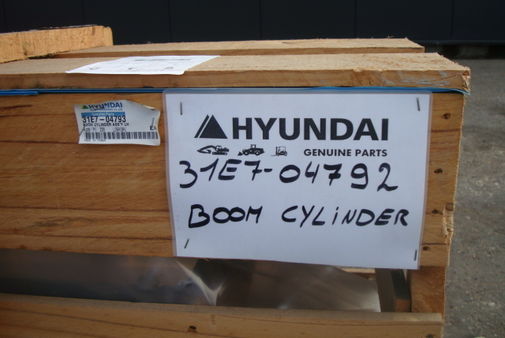

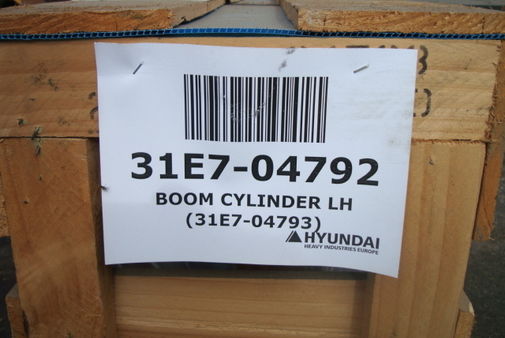

PART No : 31E7-04792
TYPE : BOOM LH
PIN PLUNGER mm : 110
PIN CYLINDER mm : 100
LENGHT CYLINDER CENTER / CENTER MIN . mm : 2260
LENGHT CYLINDER CENTER / CENTER MAX . mm : 3830
OUTER DIA CYL mm : 201
DIA CYLINDER ROD mm : 120
WIDTH HEAD CYLINDER mm : 116
WIDTH HEAD ROD mm : 126
BORE CYLINDER mm : 170
