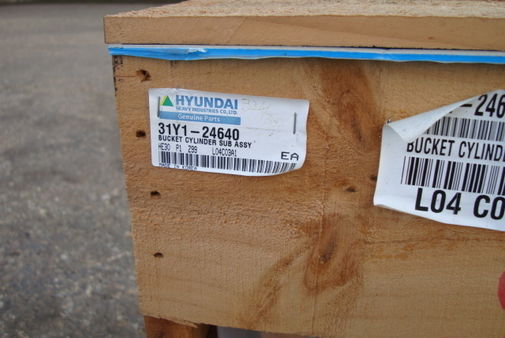

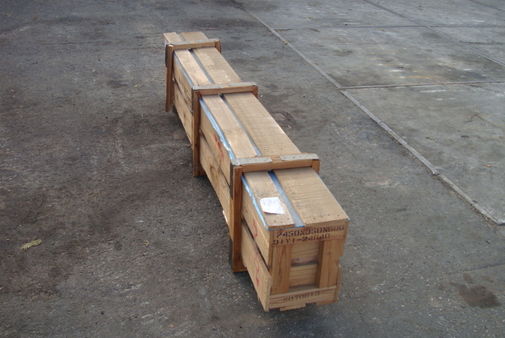

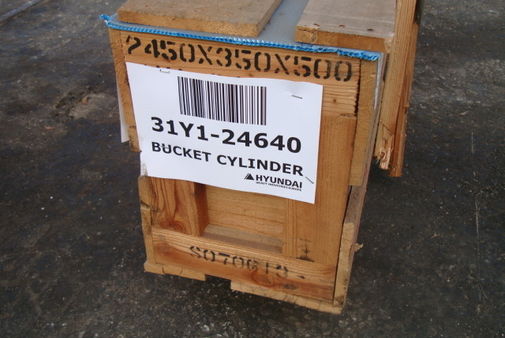

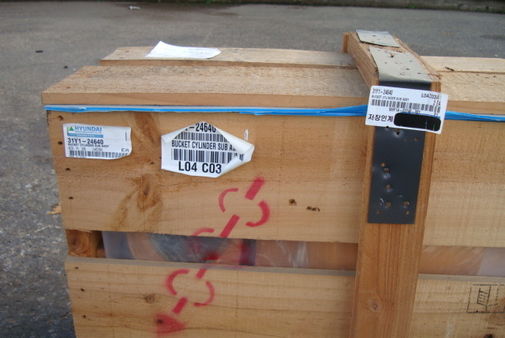

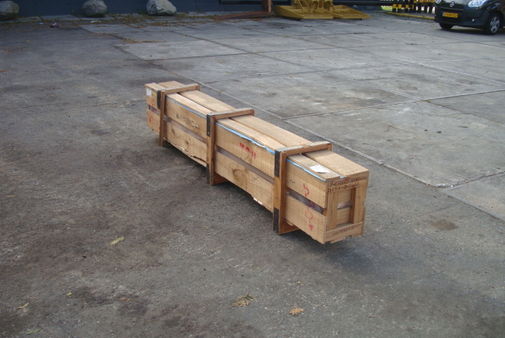

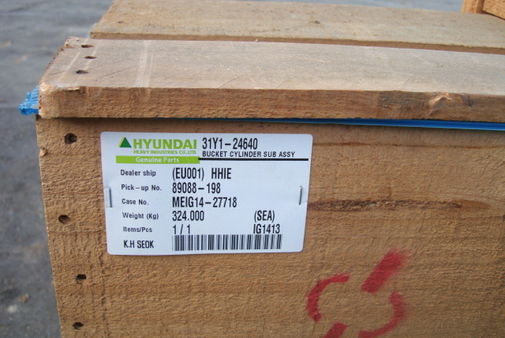

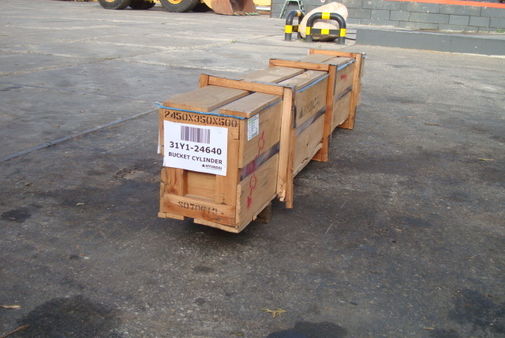

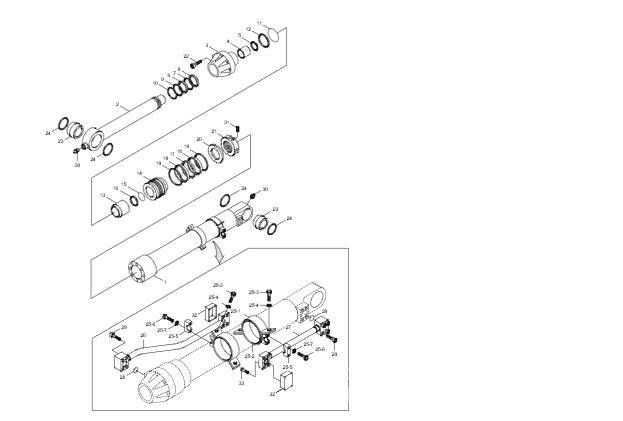

BUCKET CYLINDER SUB ASSEY

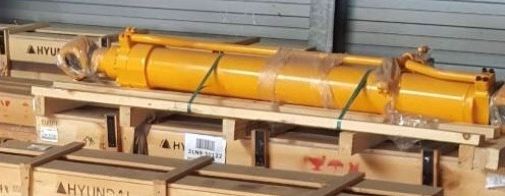

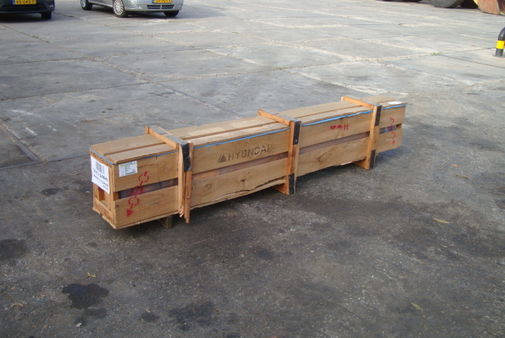

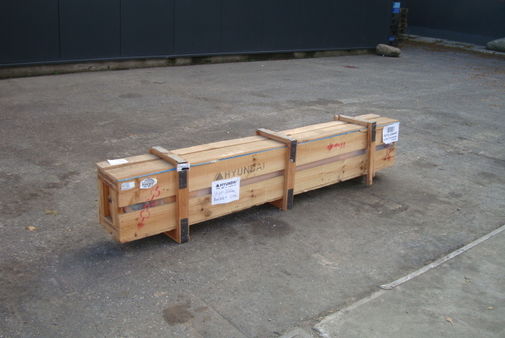

NEW / UNUSED ORIGINAL * HYUNDAI * HYDRAULIC CYLINDER
FOR EXCAVATOR : HYUNDAI R450LC-7 & 7A
PART No : 31Y1-24640
TYPE : BUCKET
PIN PLUNGER mm : 100
PIN CYLINDER mm : 100
LENGHT CYLINDER CENTER / CENTER MIN . mm : 2099
LENGHT CYLINDER CENTER / CENTER MAX . mm : 3469
OUTER DIA CYL mm : 189
DIA CYLINDER ROD mm : 110
WIDTH HEAD CYLINDER mm : 116
WIDTH HEAD ROD mm : 116
BORE CYLINDER mm : 160
