Quik-coupler Pin Ø 80 mm+ Ø 70 mm

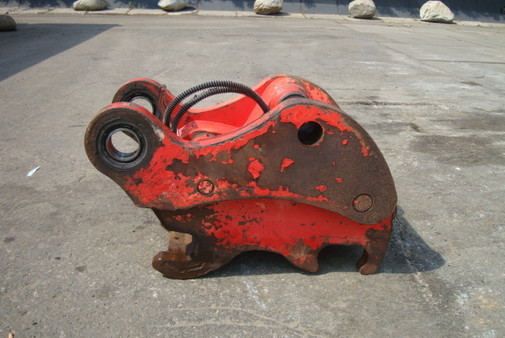

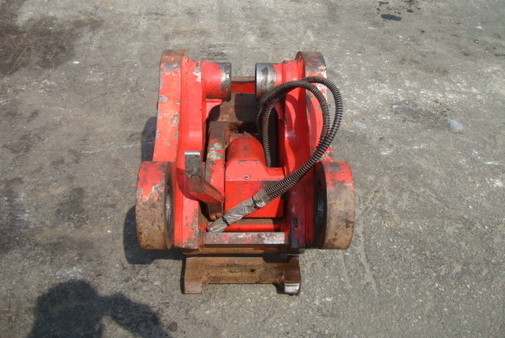

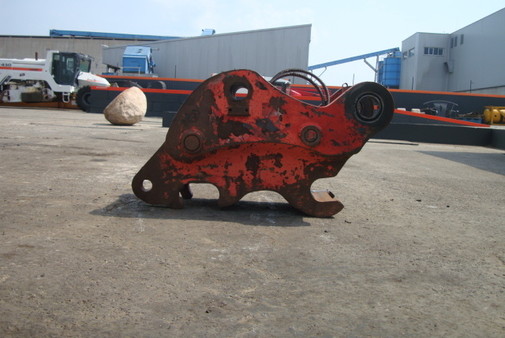

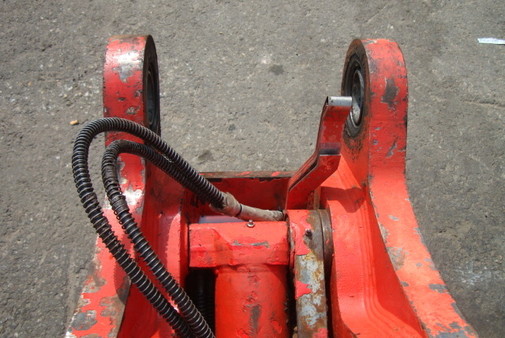

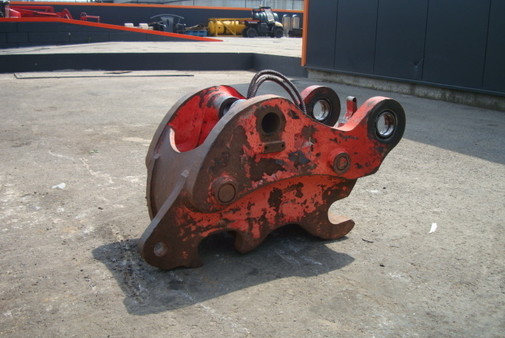

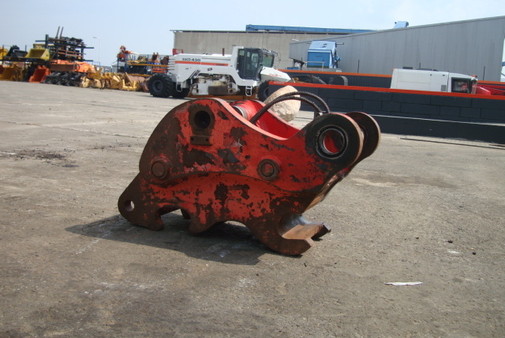

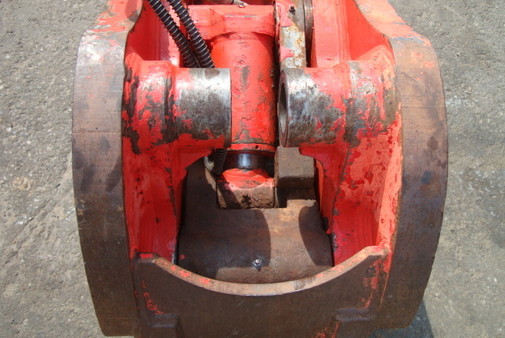

VERY GOOD CONDITION USED HYDRAULIC QUIK-COUPLER

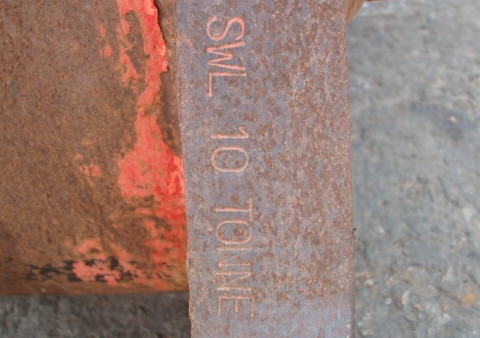

SWL : 10 Ton
FITTING DIMENSIONS TO STICK :

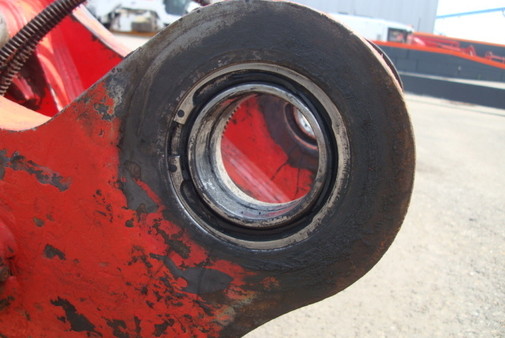

STICK : PIN Ø 80 mm - WIDTH 340 mm
LINKAGE : PIN Ø 70 mm – WIDTH 70 mm
CENTER / CENTER PINS : 500 mm
FITS ON ALL DIRECT CONECTION BUCKETS WITH PINS Ø 90 mm
TO USE ON : 27 – 35 TONS EXCAVATORS
