Hammer Bracket HB3100/HB4700

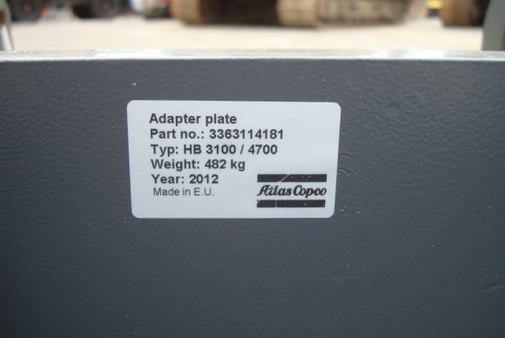

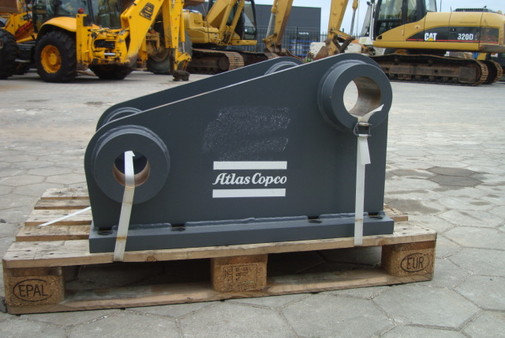

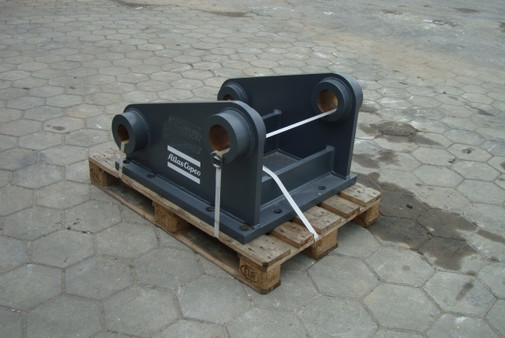

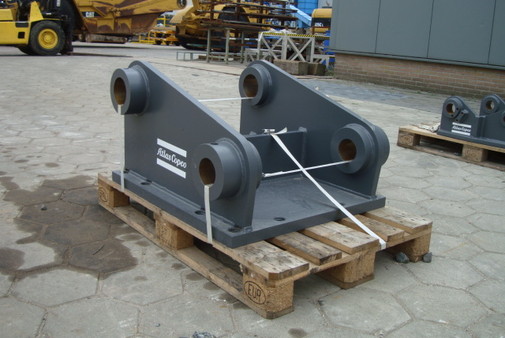

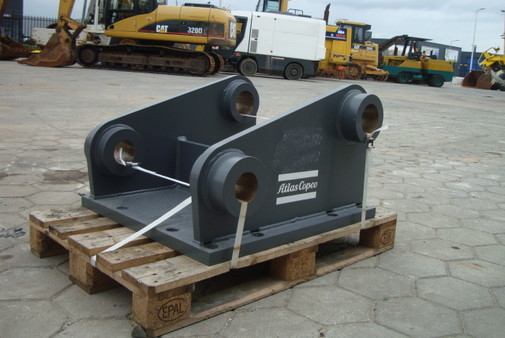

NEW / UNUSED ORIGINAL '' ATLAS COPCO '' ADAPTER
PLATE FOR HYDRAULIC HAMER HB 3100 / HB 4700
Fitting dimensions :
Nominal stick pin : 110 mm
Nominal link pin : 90 mm
Stick width : 500 mm
Link width : 500 mm
Pin centers : 630 mm
FITS ON : CAT 365BL V-Link
NEW / UNUSED ORIGINAL '' ATLAS COPCO '' ADAPTER
PLATE FOR HYDRAULIC HAMER HB 3100 / HB 4700
Fitting dimensions :
Nominal stick pin : 110 mm
Nominal link pin : 90 mm
Stick width : 500 mm
Link width : 500 mm
Pin centers : 630 mm
FITS ON : CAT 365BL V-Link
